Problems with hardware:
Ok, the Thinkpad kind of died. Maybe
trying to fit everything on a 486 with a 200 megabyte drive isn't as easy
as it should be. Redhat 8.0 is something like over a
gig installed. Yeah, it might be a nice system for the casual
desktop user, but adapting this to a small, low resources machine is a
task... a bigger task than I had thought.
More recently I have been looking at smaller distributions,
and building for small targets. Some candidates were some single
floppy distributions (such as Tom's rb),
and some embedded packages. Mindori
Linux from Transmeta is tempting,
but getting it to make a working build is a task in itself.
The hardware problems, I will foist off to another task/document, since
we are supposed to be talking pattern recognition, and not embedded Linux.
Right?

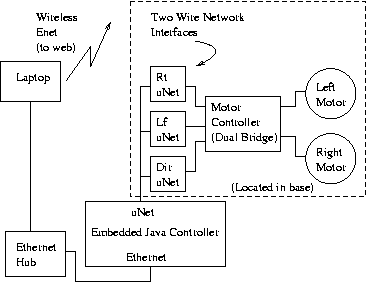

The microcontroller subsystem for controlling the motors
kind of happened, but differently. I became fascinated by an
embedded ethernet controller, and some serial busses for stringing chips
together. What resulted was stripping a stepper control
bridge circuit from an old miniscribe 20 mB hard disk, and adding a few
control chips, I had the ethernet controller running a little java program
that would allow the motor bridge controller operable over an ethernet
link. This distributed networked control system is a candidate
for a long past due thesis.
Below is a picture of the robot base with the laptop platform and the
quickcam removed:
The code looks for the largest mostly red object it can find in it's field of view. The object of the robot's passion is a red toy playground ball. I bought it thinking that it was very red, but luckily, as it turns out, it seems to be an almost perfect red.
I started by taking the cqcam code, took a picture, and then imported
it into the Gimp, and ran a histogram
on the color spectrum. The red components, in the area of the
ball appear to be twice as large as the green or blue components, so I
start by searching the image for pixels that are twice as red as they are
blue or green.

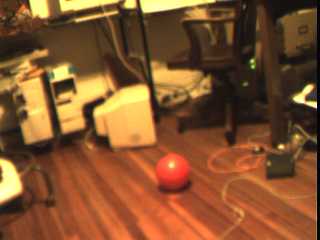

A
typical view can be seen here, in a room with wood floor an incandescent
light. One thing that is interesting to note is that the picture
isn't in focus. It seems that since we are looking for large
areas of red, the focus is not as important.
Next
the color filtering is applied. All values are set to 0xff
if it thinks red is dominate in the pixel otherwise the the red values
are left alone and the green and blue values are set to 0x00.
Interestingly
enough, the quality, and type of light has a huge effect on the colors
in the image. Notice, the wood floor has a brown color, which
has a red component to it. So, glare is detected as red,
and there is some splotching from the floor color. Now, if
I turn on a fluorescent desk lamp (with a GE F15T8SW soft white bulb, and
a Sylvania F15T8-D Daylight bulb), the color map shifts sufficiently to
to take the detected red out of the wooden floor, and the image cleans
up significantly. With sunlight, in a slightly different room,
there was good color separation from the floor colors, but the light levels
and the floor finish was sufficient that a reflection of the ball was picked
up by the color recognition routine.
The next task is to clean up the image. First we apply the despeckle routine from the cqcam package.
Next we crop the image edges off (since we were getting noise in those areas any ways), and start looking for regions that are solid red. To tell if the region is red, it looks for the number of neighbors that are red adjacent to the red area. If a pixel has less than nine neighbors, and more than eight neighbors, it is kept, otherwise the pixel is turned to black. (The range can be adjusted to allow for more fuzzy areas to be kept, but fully surrounded points seems to work well enough.) This will tend to filter noisy regions, and single specs here and there.
Next, we search for red areas, and detect their size. This
is done by first copying the image, and then scanning the image, for red
areas. When it finds a red area, it does a flood fill to black,
keeping track of the x & y coordinates and the number of pixels
in the object. The "center" of the object is calculated by
taking the average of the coordinates filled. The object
with the largest area is kept along with the coordinates where the center
is located. Here the calculated average center is marked
with a green blotch.
This location can then be used to navigate the base. The
system can try to adjust the motors to attempt to put the largest red object
in the center of the field of view.
